Auxiliaries

Uway offers several extruder designs to achieve the production and quality levels that you seek.

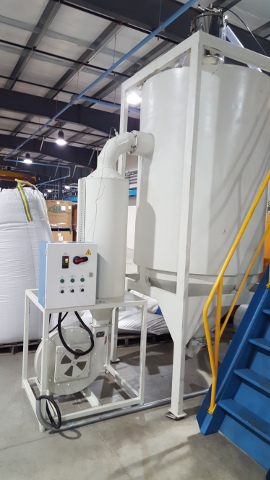

Dryers

Hopper dryers offer an effective and cost efficient method for plastic material drying. This simplistic system uses heated air to condition the material before processing with improves processing stability for most polymers. Hot air blows evenly from the bottom to the top of the hopper to improve the drying efficiency. These units can be either mounted directly on the extruder or free standing.
Dehumidifying Dryers
  • Dehumidifying dryers use heated dehumidified air to reduce the moisture content.
  • Dehumidifiers are required if a polymer requires a low level of moisture for proper processing.
  • These units are free-standing.
Crystallizer Dryers
  • Crystallizer Dryers with capacities up to 1.5 T per hour for PET for orienting the molecules within the PET material to create a clear sheet. We can provide up to 1.5 ton per hour units to match our PET single screw systems.

Material Loading

  • Vacuum loaders are easy to operate, low maintenance, and convenient to install.
  • Floor roller loaders can process up to 1500 kgs (3300 lbs) per hour.
  • Power Loaders
  • Multiple hopper loading systems (including whole facility systems)
  • Auger loaders for high pressure or high volume systems

Industrial Chillers

  • Safety trips on removable panels and lid
  • Master breaker and push button controls
  • Electronic overloads
Casual Use Granulators
Fully airtight silent designed, noise below 80db at 1 meter away from the machine
Constant Abuse Granulators
Dependable and efficient for the size range

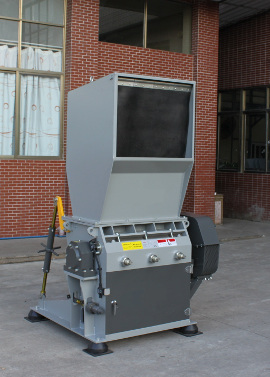

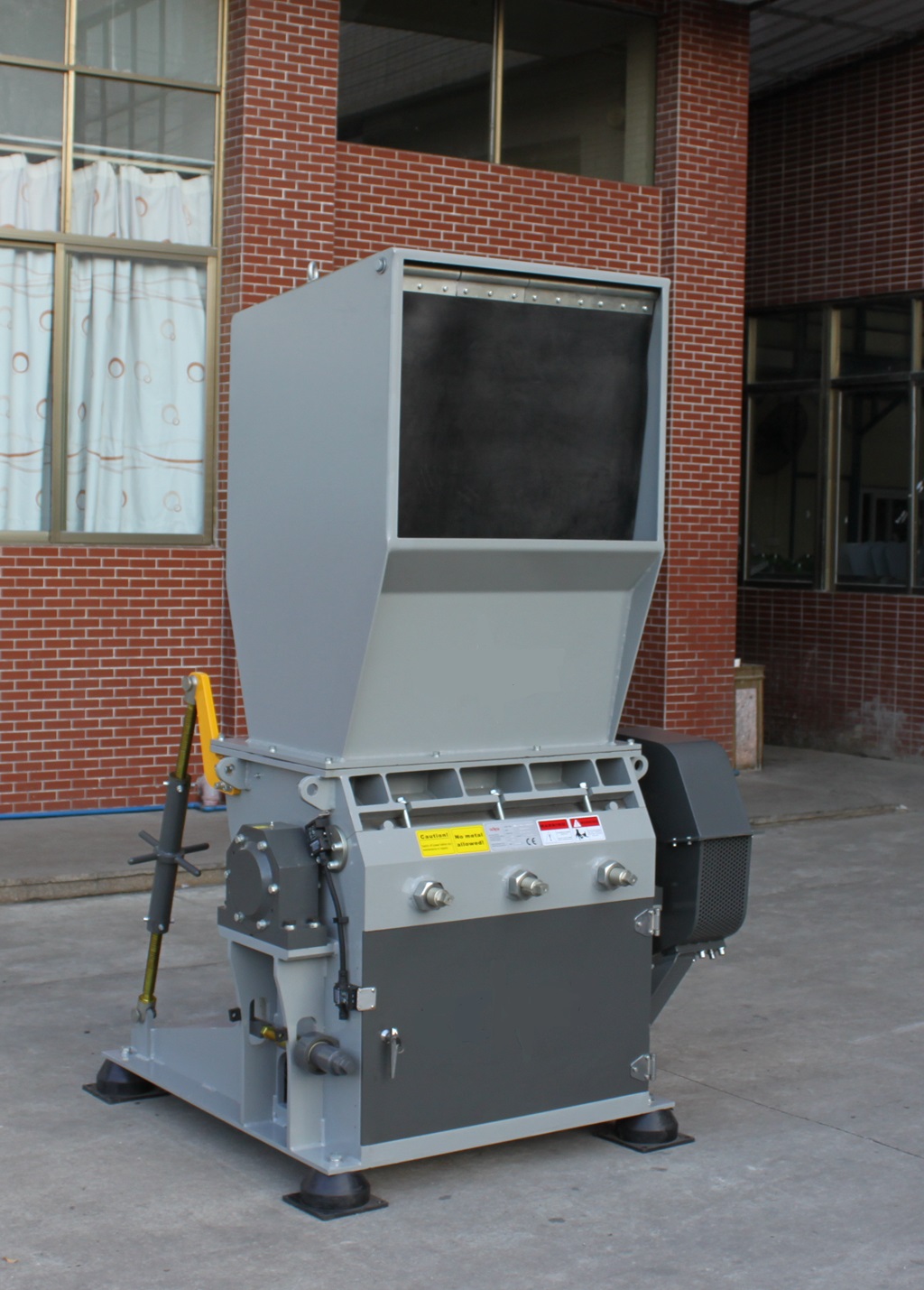

Granulators

We pride ourselves in offering a selection of granulators from casual use output models to full-time abuse built models.
Basic features of all units include:
  • Safety trips on removable panels and lid
  • Master breaker and push button controls
  • Electronic overloads
  • Fully guarded
  • Open rotor designs
  • Easy to maintain blades
  • Easy to replace screen(s)
  • Easy to open lid and tank
  • Easy to clean blower
  • Imported German or Japanese steel for the knives
  • Japanese bearings with external mounting for longevity
Casual Use Granulators
  • Fully airtight silent designed, noise below 80db at 1 meter away from the machine
  • Very economical
  • Dependable, quiet, and efficient
  • Up to 50 hp motors
  • Five different blade designs for material and output specifications
  • Soundproof designs on most models
  • Cyclones, blowers and dust collectors available for all models
  • SKD 11 steel blade knives
  • Low cost replacement parts
Model No. Motor (HP) Rotor Dia. Into Size Capacity (Lbs) Overall Dimensions
W400 10HP 9.5" 16" x 9" 275 46" x 36" x 65"
W500 15HP 12" 20" x 11" 400 51" x 41" x 75.5"
W600 20HP 12" 24" x 12.5" 550 53.5" x 45" x 84.5"
W800 30HP 16" 32" x 18.5" 700 72.5" x 60" x 103.5"
W790 50HP 18.5" 31" x 21.5" 1000 81" x 67" x 124"

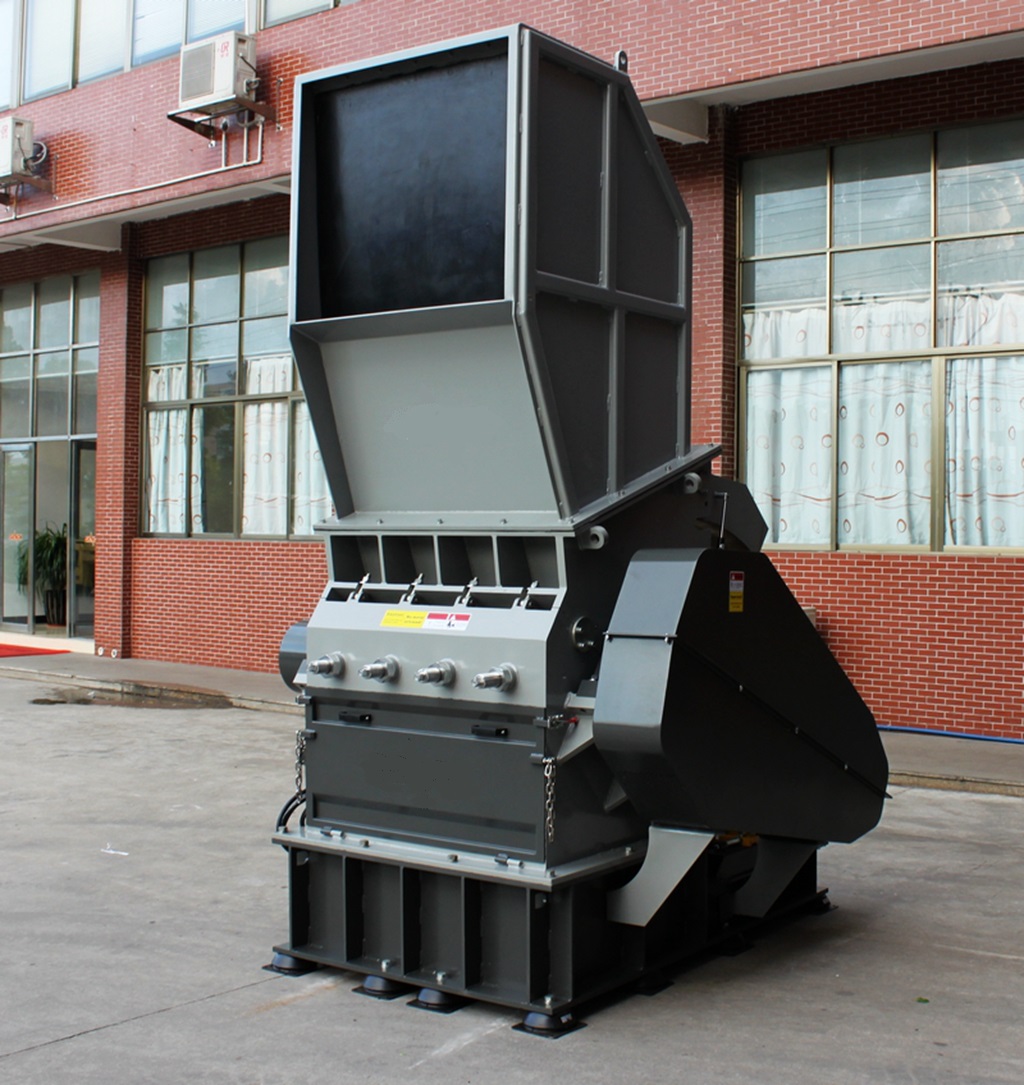

Constant Abuse Granulators
  • Dependable and efficient for the size range
  • Up to 275hp motors
  • Four different blade designs for material and output specifications
  • Soundproof designs on all models to reduce noise levels
  • Cyclones, blowers and dust collectors available for all models
  • Independent control panel
  • Built-in, start-up protocol
  • Conveyors available
  • Magnet separators available
  • Solid SKD 11 steel blade knives
  • The size of the screen could be 8-60mm by order
Model No. Motor (HP) Rotor Dia. Into Size Capacity (Lbs) Overall Dimensions
L320 30HP 12.5" 13" x 24.5" 1000 47.5" x 55" x 75.5"
L420 45HP 16.5" 18.5" x 31.5" 1400 73.5" x 69.5" x 97.5"
L520 75HP 20.5" 39.5" x 49.5" 2300 82" x 75.5" x 114.5"
L522 100HP 20.5" 47" x 57.5" 2700 82" x 83.5" x 114.5"
L526 150HP 20.5" 63" x 73" 3500 82" x 99.5" x 114.5"
L662 125HP 26" 47" x 57.5" 3500 95.5" x 88.5" x 157.5"
L666* 150HP 26" 63" x 73" 4500 95.5" x 104.5"x 157.5"
L660 175HP 26" 78.5" x 89" 5500 95.5" x 120" x 157.5"
L800 215HP 31.5" 78.5" x 89" 7700 104" x 124.5" x 180.5"
L804 275HP 31.5" 94.5" x 105" 11000 104" x 140" x 180.5"
